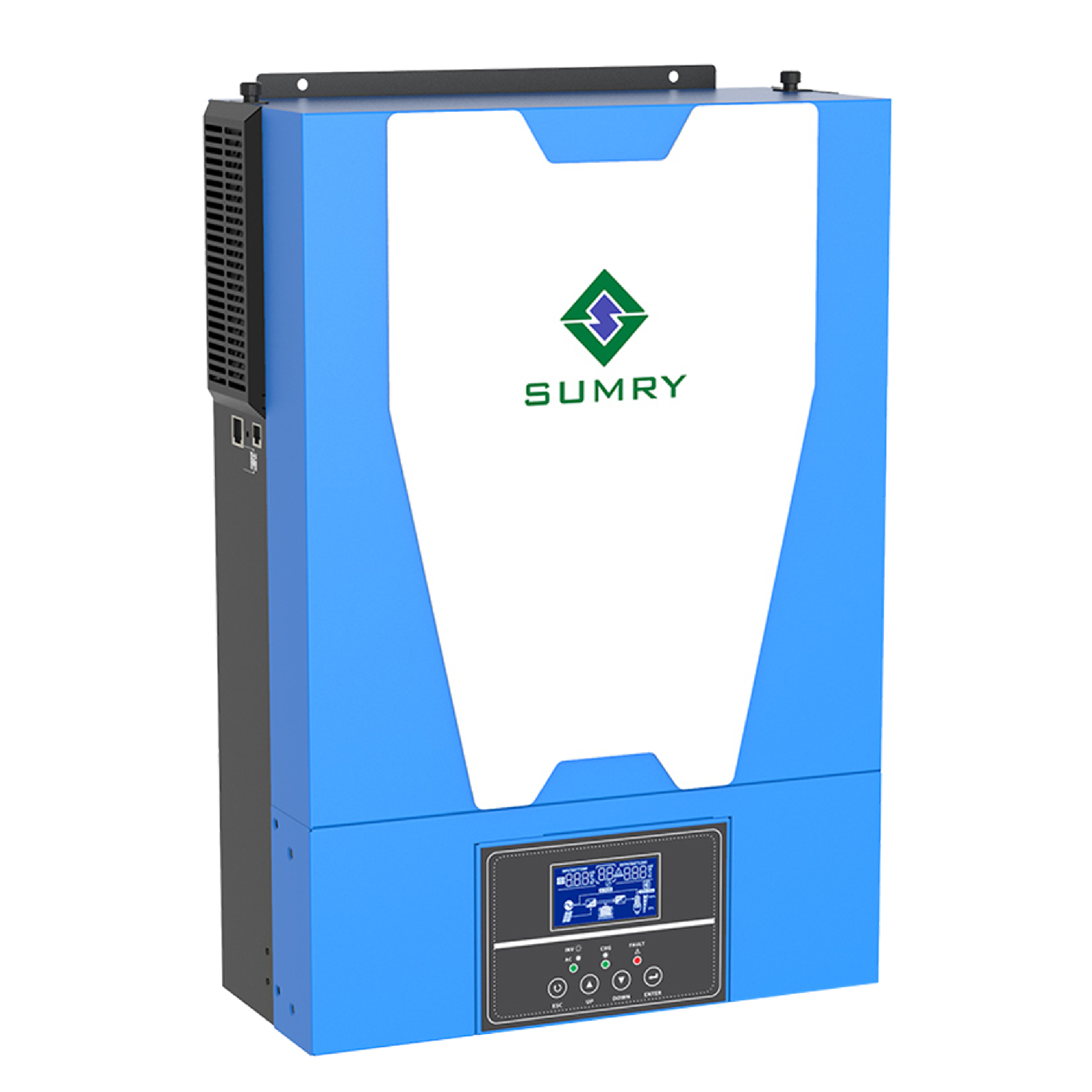

MODEL
|
MPS-V II-5500W
|
|
Rated Power
|
5500VA/5500W
|
|
INPUT
|
|
Voltage
|
230VAC
|
|
Selectable Voltage Range
|
170-280VAC (for personal computers)
90-280VAC (for home appliances)
|
|
Frequency Range
|
50Hz/60Hz (Autosensing)
|
|
OUTPUT
|
|
AC Voltage Regulation (Batt. Mode)
|
230VAC±5%
|
|
Surge power.
|
11000VA
|
|
Efficiency (Peak) PV to INV
|
97%
|
|
Efficiency (Peak) BAT to INV
|
94%
|
|
Transfer Time
|
10ms (for personal computers)
20ms (for home appliances)
|
|
Wave form
|
Pure Sine Wave
|
|
BATTERY & AC CHARGER
|
|
Battery Voltage
|
48VDC
|
|
Floating Charge Voltage
|
54VDC
|
|
Overcharge Protection
|
63VDC
|
|
Maximum charge current
|
80A
|
|
SOLAR CHARGER
|
|
MAX. PV Array Power
|
5000W
|
|
MPPT Range@ Operating Voltage
|
120-450VDC
|
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
|
Maximum Charging Current
|
100A
|
|
Maximum Efficiency
|
98%
|
|
PHYSICAL
|
|
Dimension. D*W*H(mm)
|
440*300*100
|
|
Net Weight (kg)
|
12kg
|
|
Communication Interface
|
REMOTE LCD/RS232(Standard)
GPRS/WIFI(Optional)
|
|
OPERATING ENVIRONMENT
|
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
Operating Temperature
|
0 to 55
|
|
Storage Temperature
|
-15 to 60
|
